Special Industrial Pressure Transmitter For Construction Machinery And Aerospace
Features
○ Wide Temperature Range, -40℃ to 105℃
○ Compact Structure with Excellent Cost-Effectiveness
○ Algorithm Compensation and Correction Technology
○ 150% F.S Overload Resistance Performance
○ High Impact Resistance
○ Multiple Signal Outputs
○ Supports Customization for Various Specifications
Applications
○ Industrial Control
○ Automobiles and Ships
○ Petrochemical industry
○ Construction Machinery
○ Aerospace
Description
300 Series Transmitter is a fully independent and self developed product, designed for specialized industrial
pressure applications. Its core sensor utilizes a high-precision sputtered thin-film element.
The product features compact size, lightweight design, high accuracy, and impact resistance. With its
easy installation, superior performance, and cost-effectiveness, it is suitable for measuring industrial liquids and gases. It is particularly well-suited for applications in industrial control,automotive and marine industries, petrochemical industry, and construction machinery.
From R&D design, production assembly, calibration, to quality inspection, every step of our manufacturing process
strictly adheres to international quality production system standards.
Specifications
| Model | 300 Series |
| Pressure Type | Gauge Pressure, Absolute Pressure |
| Range | 0-1…2000 bar (Customizable) |
| Accuracy | ≤ ±0.25%F.S； ≤ ±0.5%F.S；Customizable |
| Electrical Performance | 2-wire | 3-wire |
| Output Signal | 4~20mA | 0~5V | 0~10V | 0.5~4.5V |
| Supply Voltage | 10-30V DC | 8~32V DC | 12-32V DC | 8-32V DC / 5V DC |
| Operating Temperature | -40℃~105℃(Medium temperature), Customizable |
| Storage Temperature | -40℃~105℃ |
| Electrical Connection | M12 Aviation Connector, Straight Connection, Packard Connector, Hirschmann Connector, Customizable |
| Pressure Connection | Internal Thread | 7/16~20 UNF |
| External Thread | 1/4" NPT,R1/4,G1/4",G1/2",M14×1.5,M16×1.5,M20×1.5 |
| Customizable | Thread specifications can be customized according to customer requirements |
| Materials | Housing | SUS304 stainless steel (standard), Copper (optional), 316Lstainless steel (optional), Customizable |
| Sensor | Sputtered film (standard 17-4PH), Customizable |
| O-ring | NBR (Standard), PTFE/CR/EPDM (Optional) |
| Protection Rating | IP65,IP67,Customizable |
| Response Time | ≤10ms |
| Overload Pressure | 150%F.S. |
| Long-term Stability | 0.1%F.S.±0.05%/year |
| Burst Pressure | 1000% F.S. (P ≤600bar); 200% F.S. (600bar＜P ≤2000bar) |
| Insulation Resistance | >100M Ω @50V DC |
Dimensions and Wiring Definitions
Wiring Definitions

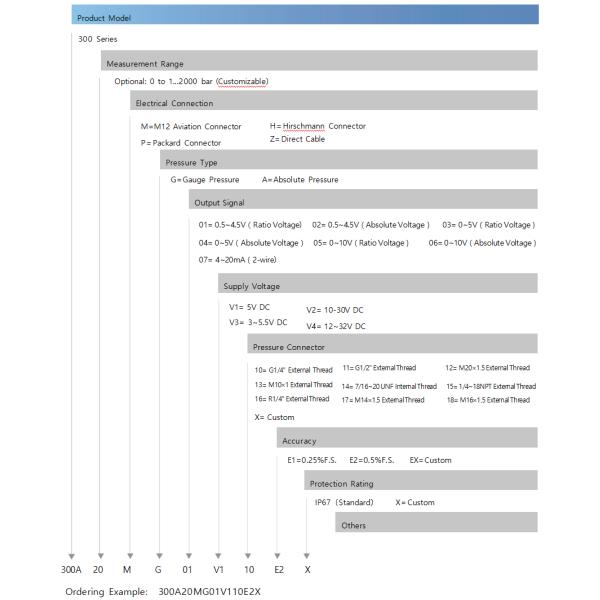

Ordering Guide
FAQ
Q1: What gives Songfast a competitive edge in the market?
A: Songfast’s technical team brings over two decades of specialized experience in the sensor industry. We are committed to delivering fast, professional solutions tailored to our clients’ specific applications, and we readily accommodate custom requests. Our dedicated quality management team ensures rigorous production oversight, enabling us to maintain strict quality standards and guarantee delivery within 30 days.
Q2: Which certifications and compliance standards has Songfast achieved?
A: We proudly hold the following certifications:
- ISO 9001 (Quality Management)
- IATF 16949 (Automotive Industry)
- ISO 45001 (Occupational Safety)
- ISO 14001 (Environmental Management)
Additionally, we have been awarded more than 20 national patents, reflecting our commitment to innovation and industry leadership.
Q3: Does Songfast provide custom product development beyond the existing catalog?
A: Yes, we offer comprehensive custom development services to meet unique requirements that extend beyond our standard product offerings.
